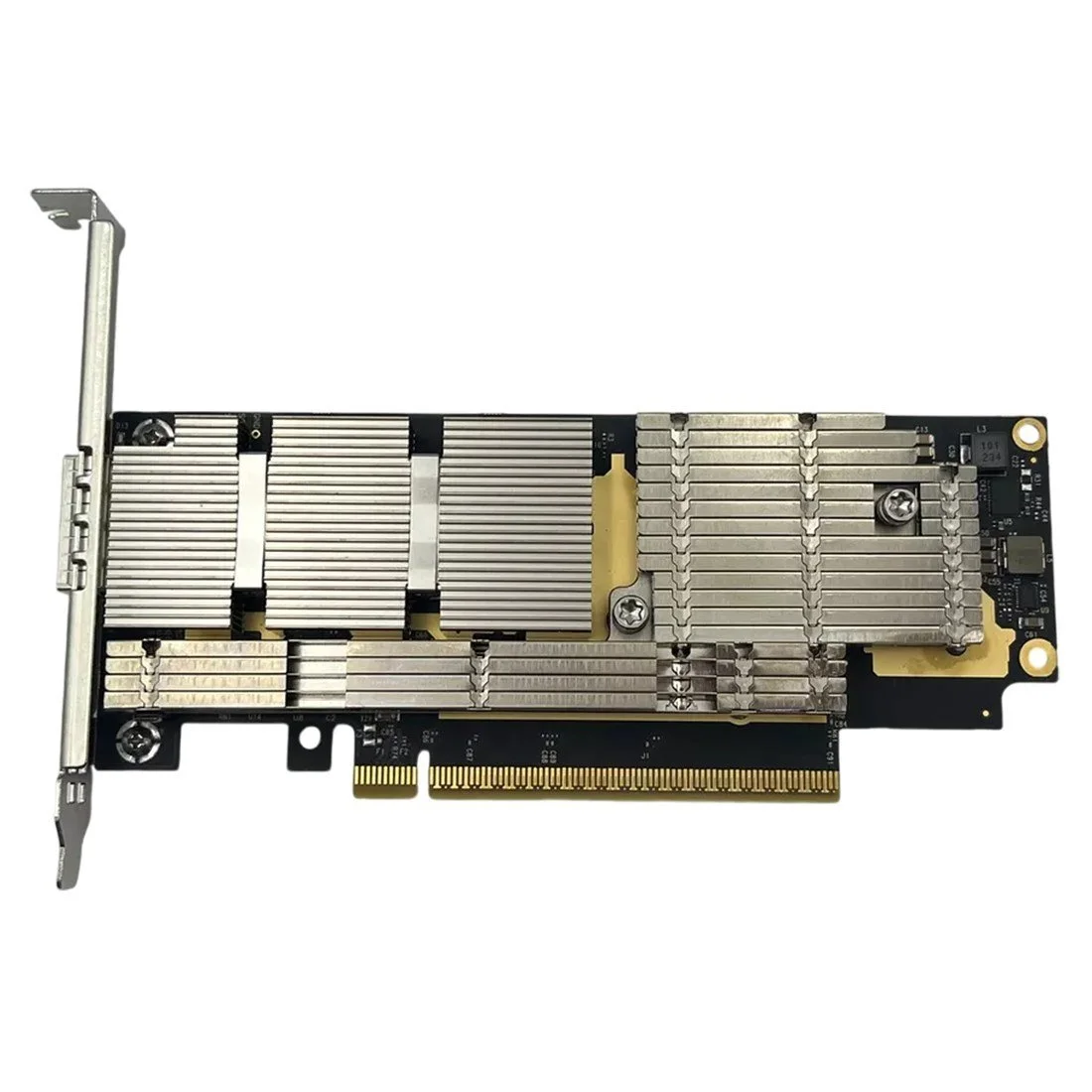

NVIDIA MCX75310AAS-NEAT ConnectX-7 400Gb/s NDR IB Single-Port OSFP PCIe 5.0 x16 No Crypto Secure Boot

NVIDIA MCX75310AAS-NEAT Connectx-7 400gb/s Ndr Ib Single-port Osfp Pcie 5.0 X16 No Crypto Secure Boot

Specifications

Adapter Card Size Pcie Half Height, Half Length 2.71 In. X 6.6 In. (68.90mm X 167.65 Mm)

Interfaces Pci Express Gen 4.0/5.0: Serdes 16/32gt/s, X16 Lanes (gen 3.0 Compatible)

Networking Port Single Osfp Infiniband And Ethernet

Data Rate

• Infiniband (default Mode): Ndr/ndr200/hdr/hdr100/edr/fdr/sdr

• Ethernet: 400/200/100/50/40/10/1 Gb/s Ethernet

  Protocol Support

• Infiniband: Ibta V1.5a


• Auto-negotiation: Ndr (4 Lanes X 100gb/s Per Lane) Port, Ndr200 (2 Lanes X 100gb/s Per Lane) Port, Hdr (50gb/s Per Lane) Port, Hdr100 (2 Lane X 50gb/s Per Lane), Edr (25gb/s Per Lane) Port, Fdr (14.0625gb/s Per Lane), 1x/2x/4x Sdr (2.5gb/s Per Lane).


• Ethernet: 400gaui-4 C2m, 400gbase-cr4, 200gaui-4 C2m, 200gbase-cr4, 100gaui-2 C2m, 100gbase-cr4, 100gbase-cr2, 100gbase-cr1, 50gaui-2 C2m, 50gaui-1 C2m, 50gbase-cr, 50gbase-r2 , 40gbase-cr4, 40gbase-r2, 25gbase-r, 10gbase-r, 10gbase-cx4, 1000base-cx, Caui-4 C2m, 25gaui C2m, Xlaui C2m , Xlppi, Sfi

  Capabilities Secure Boot Enabled, Crypto Disabled

  Electrical And Thermal Specifications

• Voltage: 12v, 3.3vaux

• Maximum Current: 100ma

  Typical Power With Passive Cables In Pcie Gen 5.0 X16 24.9w

  Temperature


• Operational: 0°c To 55°c


• Non-operational: -40°c To 70°c

  Humidity


• Operational: 10% To 85% Relative Humidity


• Non-operational: 10% To 90% Relative Humidity

  Altitude (operational) 3050m

  Condition: New in Box
  Availability: In Stock.
  Our Warranty: 90 Days.
